Inline Oil meter 1/2 BSP
REF: T102100
Description

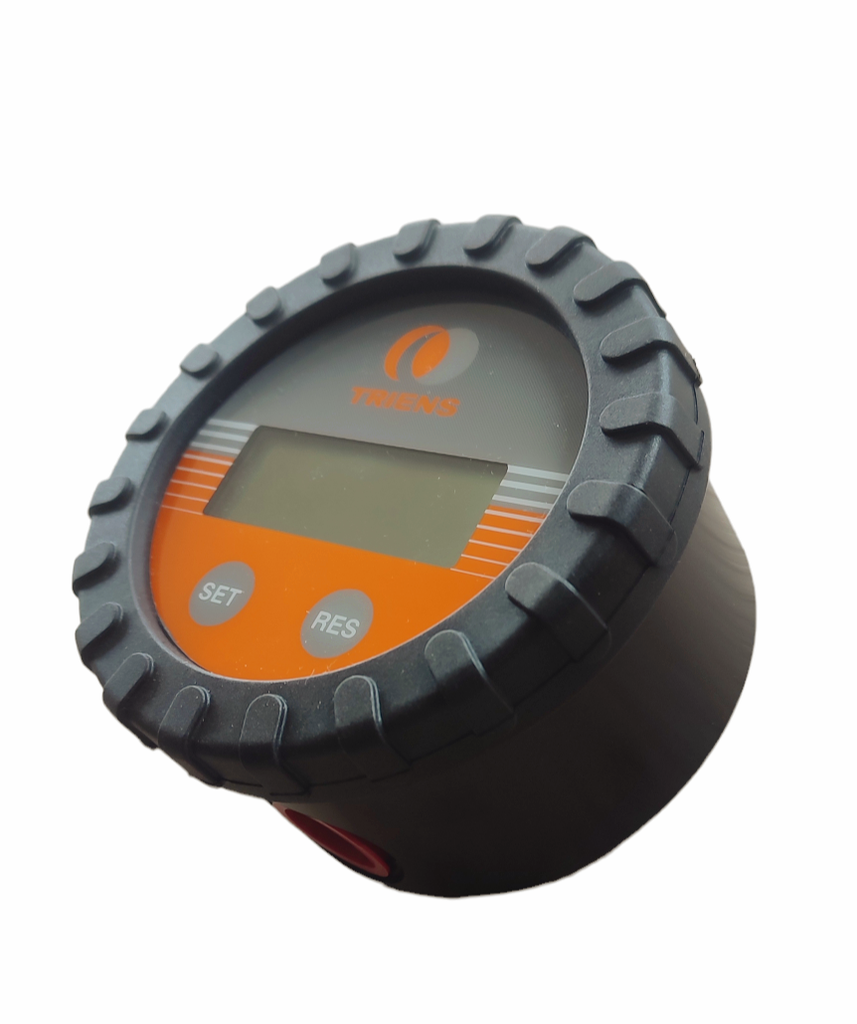

The NEW E-meter from TRIENS is an oval gear meter available in different configuration and could
be mounted on various installations.
The meter comes with an electronic 2 line display based on a modern and robust design.
• Robust and Modern design
• High pressure rate
• Extended flowrate
Applications
Measurement of Lubricant and petroleum products in non-custody transfer application.
Measuring and dispensing of fluids in repair and workshop application. Typical liquids measured
are Engine Oil, Gear box Oil and many other Oil and Petroleum based products
Size: 1/2'' (DN15)
Flow range: 0,5—60 L/min
Max pressure: 120 bar (12MPa)
Accuracy: ± 0,5%
Battery type: CR123A, 1pc
Battery consumption: 30000 dispenses or 3 years
Resettable Totalizer: 5 digits (999,99 L)
Non-resettable Totalizer: 6 digits (999999 L)
temperature range: -10 to +60 °C
Atmosphere: Indoor
IP rating: IP 65
Viscosity range: 8-5000 mPas
Size: 105*103*60 mm
Weight: ± 1,- Kg
Unit choice: Liter / Gallon / Quarts / Pint
Warranty: 24 months
Outlet thread: 1/2'' BSP G Femal (NPT 1/2'' thread available)
Inlet thread: 1/2'' BSP G Female (NPT 1/2'' thread available)
Recommend Products: Oil based Liquids
Packaging: One master Box 340x240x140 mm—12 pcs per box
Gross Weight per unit: 1,- Kg
