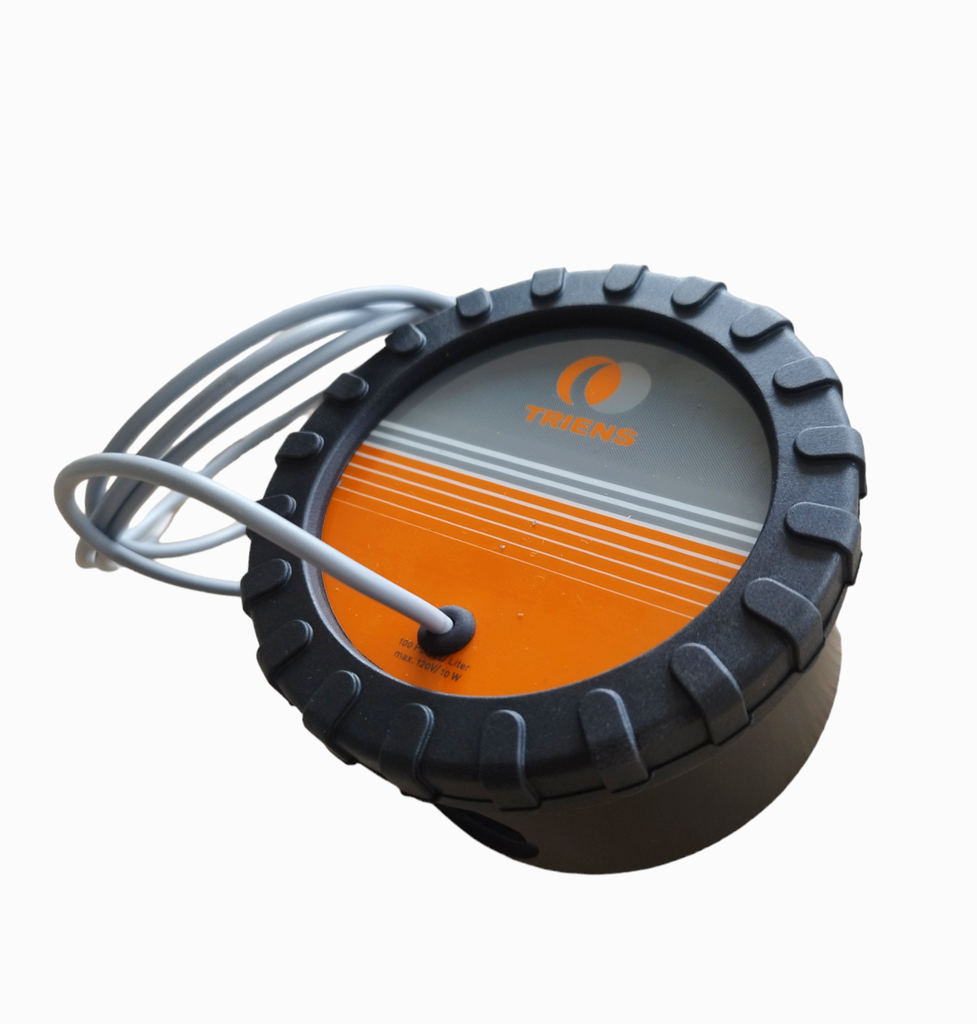

Pulse meter For Oil - 100 ppl
REF: T102101
Description
The NEW E-Pulser from TRIENS is an oval gear pulser available in different configuration and
could be mounted on various installations.
• Robust and Modern design
• High pressure rate
• Extended flowrate
Applications
Measurement of Lubricant and petroleum products in non-custody transfer application.
Measuring and dispensing of fluids in repair and workshop application. Typical liquids measured
are Engine Oil, Gear box Oil and many other Oil and Petroleum based products
Size: 1/2'' (DN15)
Flow range: 1 - 35 l/min
Max pressure: 120 bar (12MPa)
Accuracy: ± 0,5%
Temperature range: -20 - 50°C
Atmosphere: Indoor
IP rating: IP42
Viscosity range: 8-5000 mPas
Size: 105*103*60 mm
Weight: ± 1,- Kg
Warranty: 24 months
Pulse output: 1x100PPL
Outlet thread: 1/2'' BSP G Female (NPT 1/2'' thread available)
Inlet thread: 1/2'' BSP G Female (NPT 1/2'' thread available)
Recommend Products: Oil based Liquids
Packaging: One master Box 340x240x140 mm—12 pcs per box
Gross Weight per unit: 1,- Kg
Flow range: 1 - 35 l/min
Max pressure: 120 bar (12MPa)
Accuracy: ± 0,5%
Temperature range: -20 - 50°C
Atmosphere: Indoor
IP rating: IP42
Viscosity range: 8-5000 mPas
Size: 105*103*60 mm
Weight: ± 1,- Kg
Warranty: 24 months
Pulse output: 1x100PPL
Outlet thread: 1/2'' BSP G Female (NPT 1/2'' thread available)
Inlet thread: 1/2'' BSP G Female (NPT 1/2'' thread available)
Recommend Products: Oil based Liquids
Packaging: One master Box 340x240x140 mm—12 pcs per box
Gross Weight per unit: 1,- Kg
