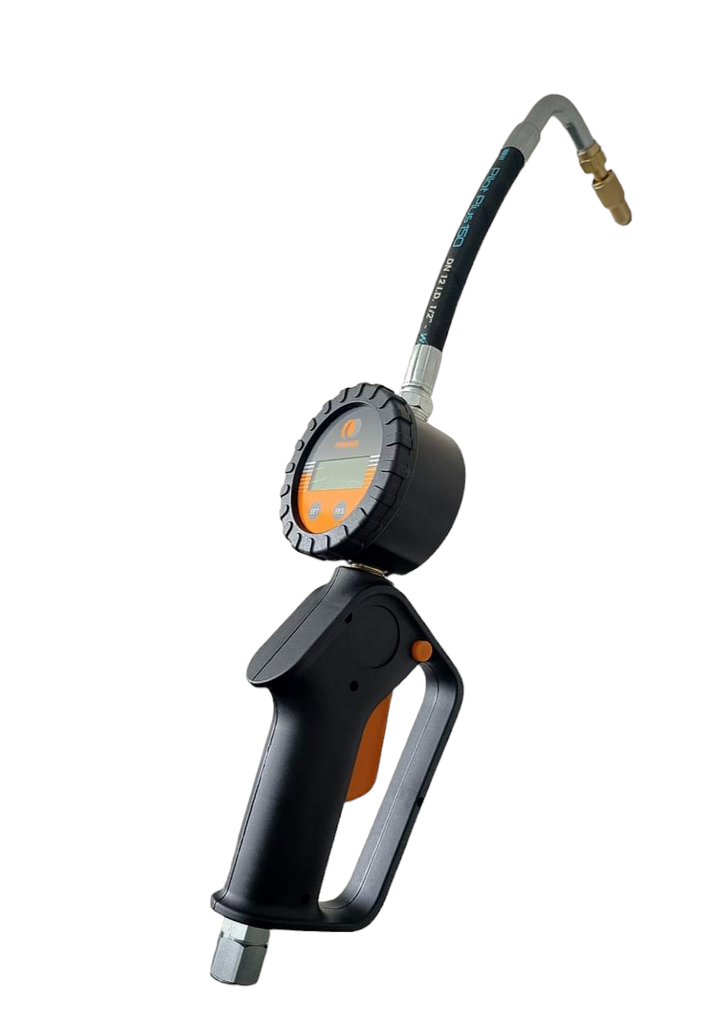

Electronic Oil Meter Complete - Flex Manual 90°
REF: T102112
The NEW E-meter from TRIENS is an oval gear meter available in different configuration and could be mounted on various installations.
The meter comes with an electronic 2 line display based on a modern and robust design.
• Robust and Modern design
• High pressure rate
• Extended flowrate
Measurement of Lubricant and petroleum products in non-custody transfer application. Measuring and dispensing of fluids in repair and workshop application. Typical liquids measured are Engine Oil, Gear box Oil and many other Oil and Petroleum based products
Size: 1/2'' (DN15)
Flow range: 1-40 L/min
Max pressure: 80 bar (8MPa)
Accuracy: ± 0,5%
Battery type: CR123A, 1pc
Battery consumption: 30000 dispenses or 3 years
Resettable Totalizer: 5 digits (999,99 L)
Non-resettable Totalizer: 6 digits (999999 L)
Temperature range: -10 to +60 °C
Atmosphere: Indoor
IP rating: IP 65
Viscosity range: 8-5000 mPas
Size: 332*103*138 mm
Weight: ± 2,- Kg
Unit choice: Liter / Gallon / Quarts / Pint
Warranty: 24 months
Outlet thread: 1/2'' BSP G Femal (NPT 1/2'' thread available)
Inlet thread: 1/2'' BSP G Female (NPT 1/2'' thread available)
Recommend: Products Oil based Liquids
Packaging: one carton 340*160*160 mm
Gross Weight per unit: 2,2 Kg
