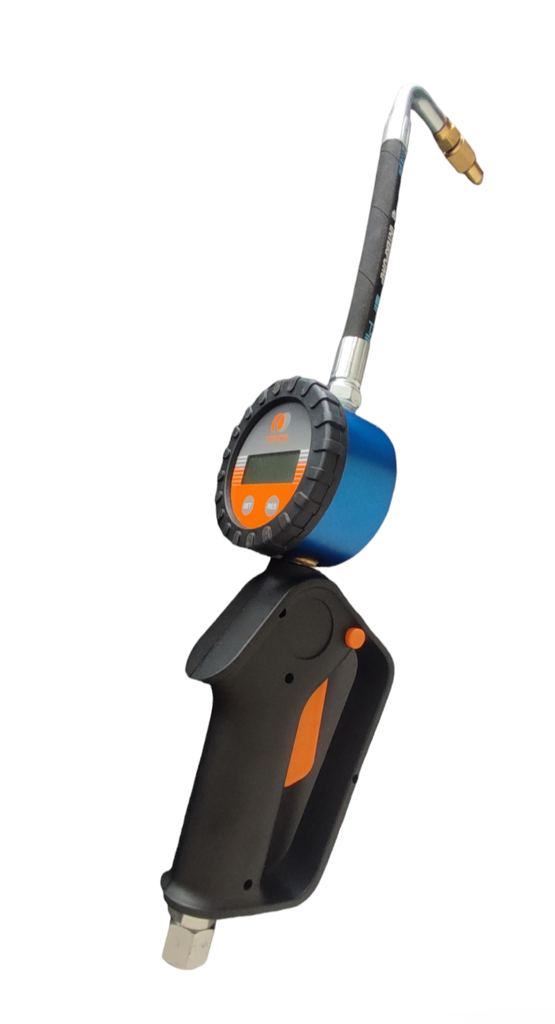

Electronic Meter for Antifreeze/Windshield - Flex Manual 90°
REF: T102360
The NEW E-meter Antifreeze from TRIENS is an oval gear meter available in different configuration and could be mounted on various installations.
The meter comes with an electronic 2 line display based on a modern and robust design.
• Robust and Modern design
• High pressure rate
• Extended flowrate
Measurement of water based products in non-custody transfer application. Measuring and dispensing of fluids in repair and workshop application. Typical liquids measured are water-based fluids (windshield washer, antifreeze, coolant).
Model: T102360
Size: 1/2'' (DN15)
Flow range: 1-40 L/min
Max pressure: 80 bar (8MPa)
Accuracy: ± 0,5%
Battery type: CR123A, 1pc
Battery consumption: 30000 dispenses or 3 years
Resettable Totalizer: 5 digits (999,99 L)
Non-resettable Totalizer: 6 digits (999999 L)
Temperature range: -10 to +60 °C
Atmosphere: Indoor
IP rating: IP 65
Viscosity range: 8-5000 mPas
Size: 332*103*138 mm
Weight: ± 2,- Kg
Unit choice: Liter / Gallon / Quarts / Pint
Warranty: 24 months
Outlet thread: 1/2'' BSP G Femal (NPT 1/2'' thread available)
Inlet thread: 1/2'' BSP G Female (NPT 1/2'' thread available)
Recommend Products: Water based Liquids
Packaging: one carton 340*160*160 mm
Gross Weight per unit: 2,2 Kg
