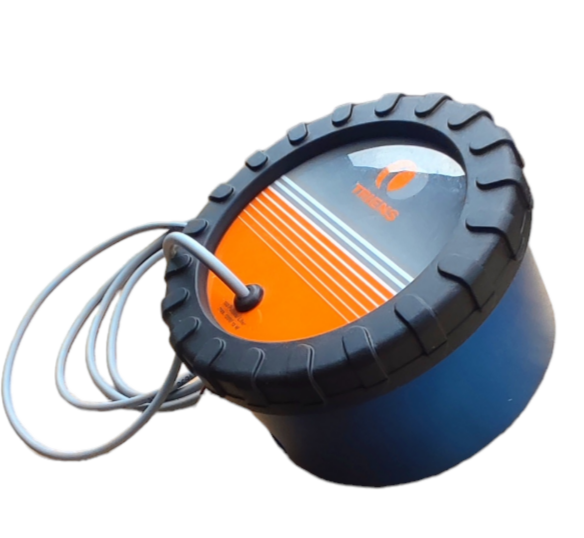

Pulse Meter For AdBlue - 100pp
Model: T106004
Size: 1/2'' (DN15)
Flow range: 1 - 35 l/min
Max pressure: 120 bar (12MPa)
Accuracy: ± 0,5%
Temperature range: -20 - 50°C
Atmosphere: Indoor
IP rating: IP 65
Viscosity range: 8-5000 mPas
Size: 105*103*60 mm
Weight: ± 1,- Kg
Warranty: 24 months
Pulse output: 1x100PPL
Outlet thread: 1/2'' BSP G Femal (NPT 1/2'' thread available)
Inlet thread: 1/2'' BSP G Female (NPT 1/2'' thread available)
Recommend: Products Adblue
Packaging: One master Box 340x240x140 mm—12 pcs per box
Gross Weight per unit: 1,-Kg
Size: 1/2'' (DN15)
Flow range: 1 - 35 l/min
Max pressure: 120 bar (12MPa)
Accuracy: ± 0,5%
Temperature range: -20 - 50°C
Atmosphere: Indoor
IP rating: IP 65
Viscosity range: 8-5000 mPas
Size: 105*103*60 mm
Weight: ± 1,- Kg
Warranty: 24 months
Pulse output: 1x100PPL
Outlet thread: 1/2'' BSP G Femal (NPT 1/2'' thread available)
Inlet thread: 1/2'' BSP G Female (NPT 1/2'' thread available)
Recommend: Products Adblue
Packaging: One master Box 340x240x140 mm—12 pcs per box
Gross Weight per unit: 1,-Kg
